GFM
Solid carbide wide range
thread milling cutter

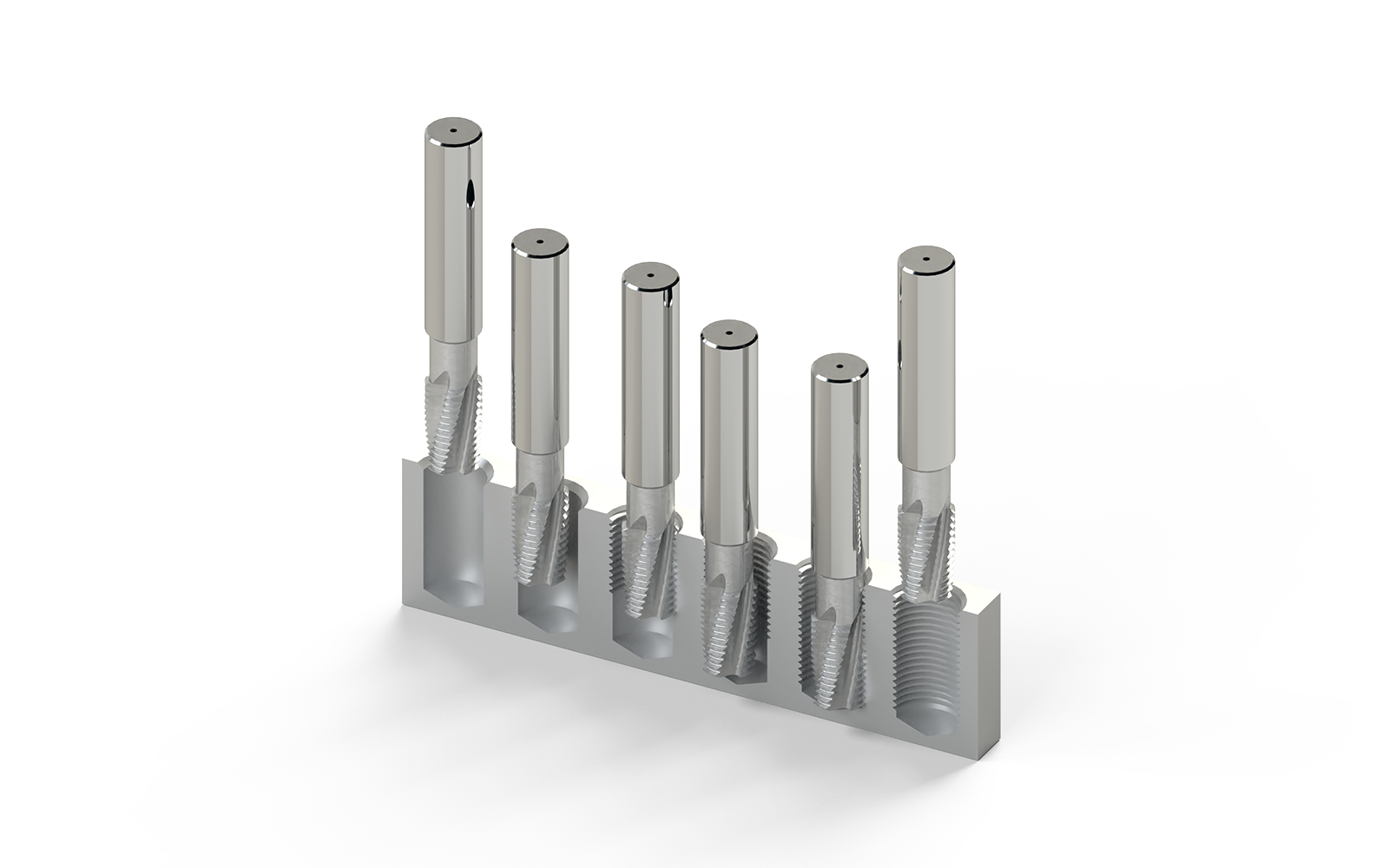

Universal tool for cutting a wide range of thread-Ø with an identical pitch.
Available thread types
Spezification
with internal coolant
Available versions
uncoated
TiCN
TiAlN
Available shank versions
Straight shank according to DIN 6535 HA, HB or HE
Example:
Sequence of operations:
1. Tool moves to initial position above centre of hole
2. Thread milling starts with cutter entry path
3. Thread milling followed by exit path
4. Return to initial position and end of machining cycle
Sequence of operations with vertical displacement
1. Tool moves to initial position above centre of hole
2. Thread milling starts with cutter entry path
3. Thread milling ends with cutter exit path
4. Z-axis displacement to required depth
5. Second thread milling process starts with cutter entry path
6. Thread milling followed by exit path
7. Return to initial position and end of machining cycle
